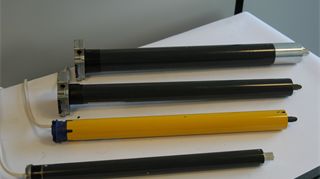

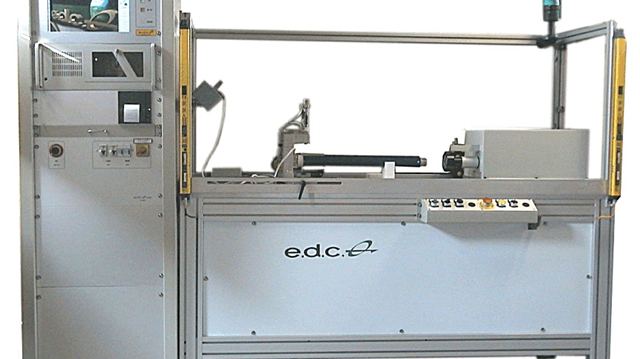

AMT320/WT is a computerized testing system designed for the complete production testing of DC-AC and/or Brushless motors for actuators, which control:

  • Awnings
  • Rolling shutters
  • Windows Blinds
  • Gates
  • Garage doors
  • And many other similar products

In addition to standard safety tests (ISO/IEC/EN60335-1, ...) the system using an active brake performs specific tests to check:

  • Maximum Starting Torque at reduced Power supply voltage
  • Load test with measure of Rpm – Torque – Efficiency with the possibility to set the load in braking or pushing mode
  • Check of the brake shifting angle (the motor is not powered and a torque is applied in CW and CCW directions)

Others special functions allow:

  • The checking of mechanical or electronic limit switches
  • The calibration of electronic limit switches
  • The complete check of control receiver
  • Possibility of parallel testing on multi-stations to minimise the testing cycle time

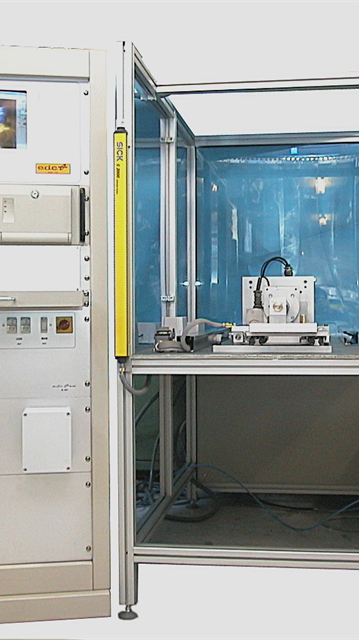

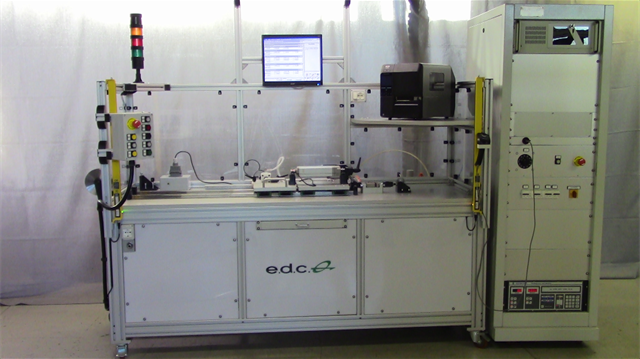

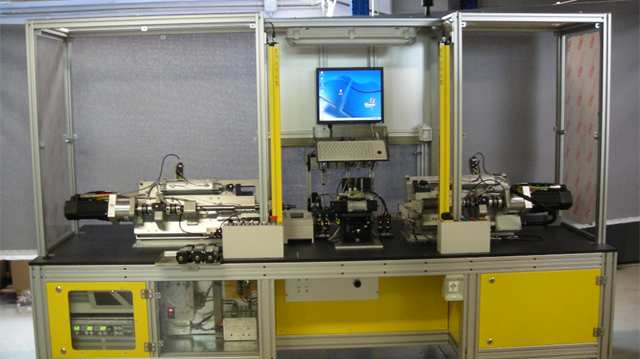

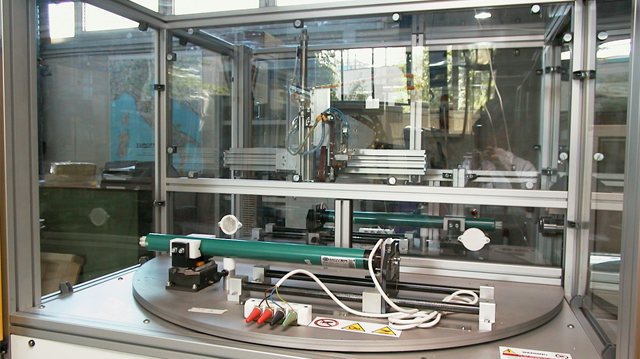

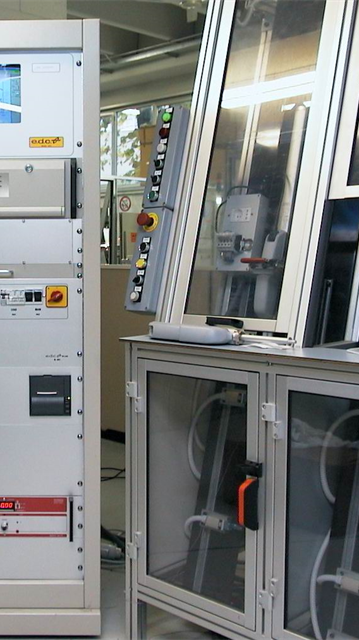

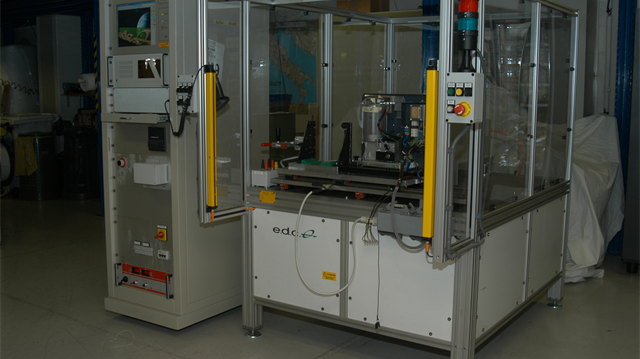

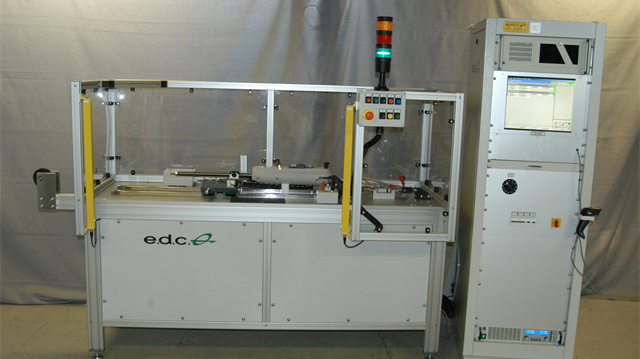

AMT320/WT can manage testing on automatic lines, rotating workbenches, single or double station manual benches, ... Often, with this kind of products, the bench is designed on request.

Category: AMT320/W
Code: AMT320/WT

Tests available for AMT320/WT
