These passive brakes are suitable for testing AC-DC low speed motors (with gear box) from 1W to 2-3KW with low speeds and high torque.

The main characteristics of these brakes are:

  • Very high torque with reduced brake dimension
  • Excellent torque control also when the motor is not running
  • The residual torque is less than 5% of the maximum torque
Category: 4220/xx

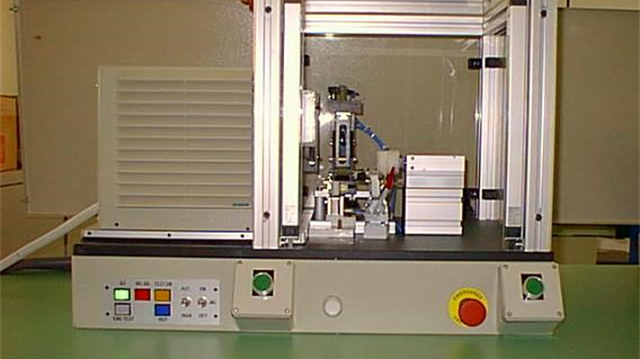

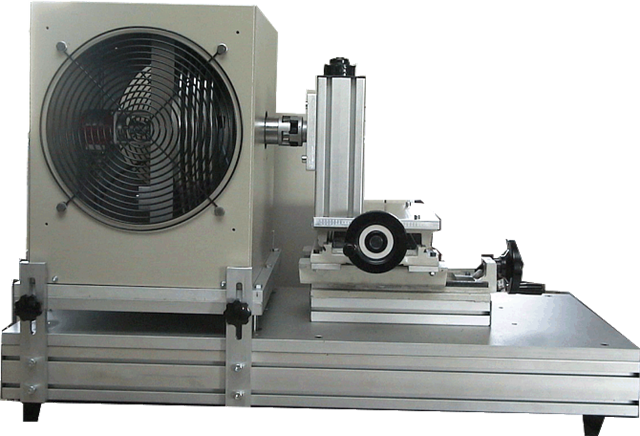

Applications made with 4220/Pxx
