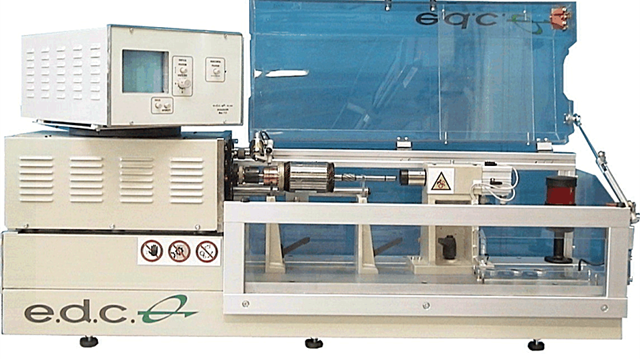

At the closure of the protection cover, the coupling phase and then the setting in rotation phase of the rotor in test automatically start.

The dimensions of the rotors that are testable on this bench in the standard version are:

  • Collector diameter: 12 ÷ 70mm
  • Rotor diameter: 20 ÷ 200mm
  • Shaft diameter: 3 ÷ 35mm • Shaft length: 40 ÷ 500mm

Special benches for bigger sizer of rotors can be designed and realized on request.

Category: 7120
Code: 7120HA
Applications made with 7120HA
