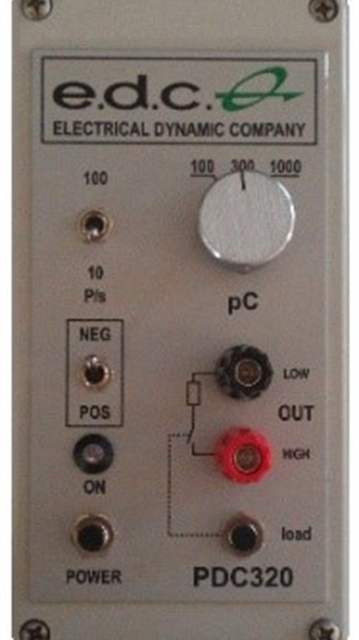

PDC320 is a battery powered PD calibrator. PDC320 is used for the calibration of Partial Discharge Measurements during Dielectric Strength Test.
The pulses are generated according to IEC60270 and IEEE454.
PDC320 can generate pulses of 100 or 300 or 1000pC.
The pulse rise time is less then 50nsec and the pulse fall time is less than 150ns.
PDC320 can generate 10Pulses/s or 100Pulses/s.
Automatically switch off in stand by condition after 60sec
The unit is supplied with a battery charger.
